KIT# DC030

Get both kits Gone
with new decals you can build any ships in the class.



Fresh from the Orange Box tree comes a juicy pair of modern-day US Navy (USN) vessels made precisely in 1/700 scale. Specifically, the two models are USS Arleigh Burke (DDG-51) and USS Nevada (SSBN-733).
The first is the lead ship in an extensive class of guided-missile destroyers. Named after a former USN admiral, this first-of-class destroyer was commissioned in July 1991.
Arleigh Burke destroyers are built from all-steel construction and feature a more stealthy design than previous classes. USS Arleigh Burke participated in Operations Enduring Freedom and Iraqi Freedom, firing Tomahawk cruise missiles
and performing interdictions in the Arabian Sea. USS Nevada, meanwhile, is an Ohio-class ballistic missile submarine that was commissioned in 1986 after being built by General Dynamics.
The submarine with 16,764-tonne displacement carries 24 Trident II D-5 ballistic missiles, as well as Mk-48 torpedoes.

Both these vessels are in current service with the USN, so this Orange Box set provides modelers with the solid foundation for a modern warship fleet.
The two models are richly detailed and a pleasure to assemble, coming as they do from Dragon’s popular 1/700 scale lineup of Sea Power ship kits.
To bring them up to the latest standard, the kits have received brand new Cartograf decals for that final decorative touch.
These fine models also come at a very reasonable price, in keeping with Orange Box’s budget-beating philosophy.



General Characteristics, Arleigh Burke class

Builders: Bath Iron Works, Ingalls Shipbuilding
Power Plant: Four General Electric LM 2500-30 gas turbines; two shafts, 100,000 total shaft horsepower.
SPY-1 Radar and Combat System Integrator: Lockheed Martin
Length:


Flights I and II (DDG 51-78): 505 feet (153.92 meters)
Hulls 51 through 71: 8,315 tons (8,448.04 metric tons) full load
Speed: in excess of 30 knots
Aircraft: None. LAMPS III electronics installed on landing deck for coordinated DDG 51/helo ASW operations

Ships:
USS Arleigh Burke (DDG 51), Norfolk, VA
USS Barry (DDG 52), Norfolk, VA
USS John Paul Jones (DDG 53), San Diego, CA

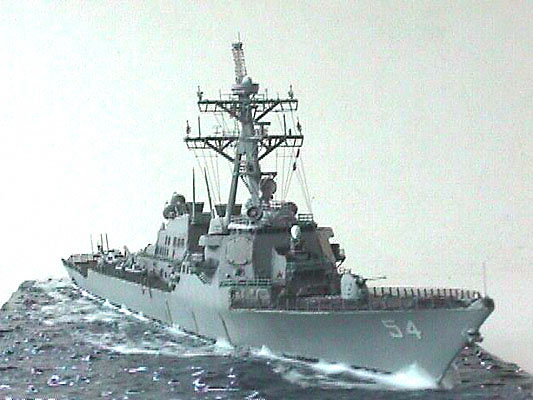

USS Curtis Wilbur (DDG 54), Yokosuka, Japan
USS Stout (DDG 55), Norfolk, VA
USS John S. McCain (DDG 56), Yokosuka, Japan
USS Mitscher (DDG 57), Norfolk, VA
USS Laboon (DDG 58), Norfolk, VA
USS Russell (DDG 59), Pearl Harbor, HI
USS Paul Hamilton (DDG 60), Pearl Harbor, HI
USS Ramage (DDG 61), Norfolk, VA
USS Fitzgerald (DDG 62), Yokosuka, Japan
USS Stethem (DDG 63), Yokosuka, Japan
USS Carney (DDG 64), Mayport, FL
USS Benfold (DDG 65), San Diego, CA
USS Gonzalez (DDG 66), Norfolk, VA
USS Cole (DDG 67), Norfolk, VA
USS The Sullivans (DDG 68), Mayport, FL
USS Milius (DDG 69), San Diego, CA
USS Hopper (DDG 70), Pearl Harbor, HI
USS Ross (DDG 71), Norfolk, VA
USS Mahan (DDG 72), Norfolk, VA
USS Decatur (DDG 73), San Diego, CA
USS McFaul (DDG 74), Norfolk, VA
USS Donald Cook (DDG 75), Norfolk, VA
USS Higgins (DDG 76), San Diego, CA
USS O'Kane (DDG 77), Pearl Harbor, HI
USS Porter (DDG 78), Norfolk, VA

Crew: 23 officers, 300 enlisted
Armament: Standard missile; Harpoon; Vertical Launch ASROC (VLA) missiles; Tomahawk®; six Mk-46 torpedoes (from two triple tube mounts); one 5"/54 caliber Mk-45 (lightweight gun); two 20mm Phalanx CIWS
Date Deployed: July 4, 1991 (USS Arleigh Burke)

General Characteristics, Ohio Class

Builders: General Dynamics Electric Boat Division.
Power Plant: One nuclear reactor, one shaft
Length: 560 feet (170.69 meters)
Beam: 42 feet (10.06 meters)
Displacement: 16,764 tons (17,033.03 metric tons) surfaced; 18,750 tons (19,000.1 metric tons) submerged
Speed: 20+ knots (23+ miles per hour, 36.8 +kph)
Ships:
Homeported at the Naval Submarine Base, Bangor, Washington:
USS Ohio (SSBN 726)
USS Michigan (SSBN 727)
USS Florida (SSBN 728)
USS Georgia (SSBN 729)
USS Henry M. Jackson (SSBN 730)
USS Alabama (SSBN 731)
USS Alaska (SSBN 732)
USS Nevada (SSBN 733)
Homeported at the Naval Submarine Base, Kings Bay, Georgia:
USS Tennessee (SSBN 734)
USS Pennsylvania (SSBN 735)
USS West Virginia (SSBN 736)
USS Kentucky (SSBN 737)
USS Maryland (SSBN 738)
USS Nebraska (SSBN 739)
USS Rhode Island (SSBN 740)
USS Maine (SSBN 741)
USS Wyoming (SSBN 742)
USS Louisiana (SSBN 743)
Crew: 15 Officers, 140 Enlisted
Armament: 24 tubes for Trident I and II, MK-48 torpedoes, four torpedo tubes.
Date Deployed: November 11, 1981 (USS Ohio)
