USS Gato Class Sub Models - 1941, 1942 & 1943



USS Gato plastic kit   33.95  S104 - 10.5" long

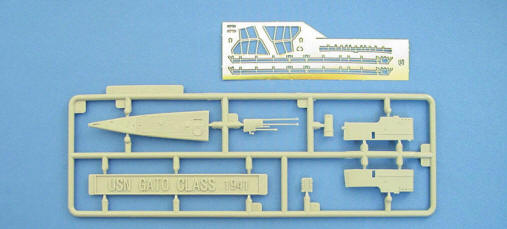

Below are the pictures of the model parts.

This is a good look at the model. This can be built as either a full hull or waterline.

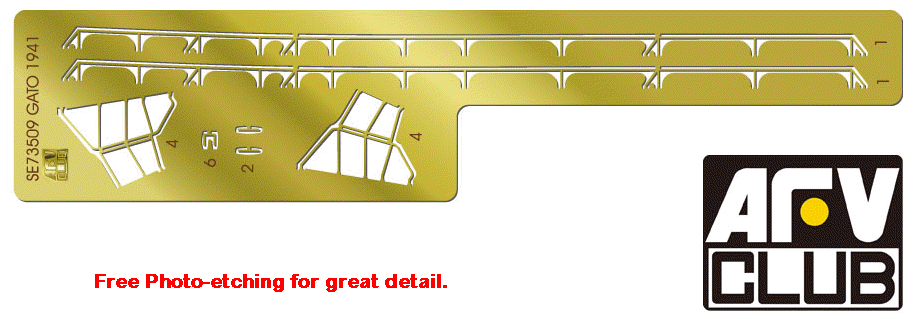

Very Nice detail this model is 10.5" long. You also get a photo-etched set for the boat.




[_private/ashey2.htm]

Gato Class:
Any of these subs can be built from this kit!

Displacement: 1526 tons surfaced, 2424 tons submerged
Length: 311'
Beam: 27'3"
Draft: 16'10"
Speed: 20 knots surfaced, 9 knots submerged
Armament: 1 3"/50 or 1 4"/50 or 1 5"/50, 6 bow and 4 stern torpedo tubes, 24 21" torpedoes (loaded tubes plus reloads: 10 forward, 4 aft)
Complement: 80
Diesel engines, surfaced/electric motors, submerged

No. Name                               Comm. Notes (: Lost)
SS-218 Albacore 1942 : 7 Nov 44?; mine, off Hokkaido?
SS-219 Amberjack 1942 : 16 Feb 43; IJN depth charges near Rabaul
SS-240 Angler 1943 ?
SS-220 Barb 1942
SS-241 Bashaw 1943
SS-221 Blackfish 1942
SS-222 Bluefish 1943
SS-242 Bluegill 1943
SS-223 Bonefish 1943 : 19 Jun 45; Toyama Wan, Honshu
SS-243 Bream 1944
SS-244 Cavalla 1944
SS-225 Cero 1943
SS-245 Cobia 1944
SS-224 Cod 1943
SS-226 Corvina 1943 : 16 Nov 43; torpedoed by I-176   SW of Truk
SS-246 Croaker 1944
SS-247 Dace 1943
SS-227 Darter 1943 : 24 Oct 44; grounded in Palawan Passage then bombed
SS-248 Dorado 1943 : 12 Oct 43; bombed by U.S. Mariner in Caribbean
SS-228 Drum 1941
SS-230 Finback 1942
SS-249 Flasher 1943
SS-250 Flier 1943 : 19 Sep 44; unknown causes
SS-251 Flounder 1943
SS-229 Flying Fish 1941
SS-252 Gabilan 1943
SS-212 Gato 1941
SS-213 Greenling 1942
SS-214 Grouper 1942
SS-215 Growler 1942 : 8 Nov 44; reported missing after attacking convoy SW of Luzon (depth charges)?
SS-216 Grunion 1942 : < 5 Oct 42; unknown causes
SS-217 Guardfish 1942
SS-253 Gunnel 1942
SS-254 Gurnard 1942
SS-255 Haddo 1942
SS-231 Haddock 1942
SS-256 Hake 1942
SS-232 Halibut 1942
SS-257 Harder 1942 : 24 Aug 44; depth charges, SW Pacific
SS-233 Herring 1942 : 1 Jun 44; shore battery in the Kuriles
SS-258 Hoe 1942
SS-259 Jack 1943
SS-234 Kingfish 1942
SS-260 Lapon 1943
SS-261 Mingo 1943
SS-262 Muskallunge 1943
SS-263 Paddle 1943
SS-264 Pargo 1943
SS-265 Peto 1942
SS-266 Pogy 1943
SS-267 Pompon 1943
SS-268 Puffer 1943
SS-269 Rasher 1943
SS-270 Raton 1943
SS-271 Ray 1943
SS-272 Redfin 1943
SS-273 Robalo 1943 : 26 Jul 44; battery explosion? off Palawan
SS-274 Rock 1943
SS-275 Runner 1942 : < 27 Oct 43; unknown causes
SS-276 Sawfish 1942
SS-277 Scamp 1942 : 11 Nov 44?; depth charge, S. of Tokyo Bay?
SS-278 Scorpion 1942 : < 22 Mar 44; unknown causes
SS-235 Shad 1942
SS-236 Silversides 1941
SS-279 Snook 1942 : <: 4 Aug 45; unknown causes
SS-280 Steelhead 1942
SS-281 Sunfish 1942
SS-283 Tinosa 1943
SS-237 Trigger 1942 : 28 Mar 45; depth charge, off Okinawa
SS-284 Tullibee 1943 : 26 Mar 44; circular return of own torpedo
SS-282 Tunny 1942
SS-238 Wahoo 1942 : < 2 Dec 43; unknown causes
SS-239 Whale 1942
