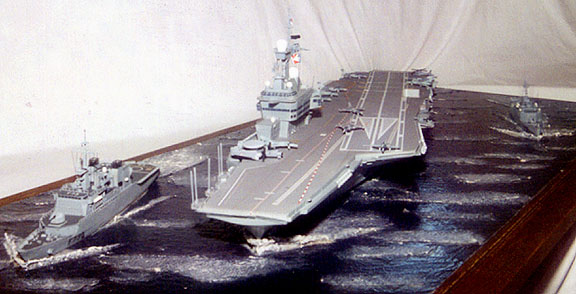

Charles de Gaul Carrier with a French Battlegroup
Built by Mike Taylor from Warship Website.
List Price 95.95   Kit#A331 - $79.95




CHARLES DE GAULLE AIRCRAFT CARRIER, FRANCE





The 38,000t, nuclear-powered aircraft carrier Charles De Gaulle was constructed at the DCN Brest naval shipyard in Brittany. The ship was launched in May 1994 and commissioned in September 2000, following sea trials which began in January 1999. As a result of trials the landing deck has been lengthened by 4.4m to enable the E-2C to land and clear the deck quickly. The carrier was due to enter service in December 2000, but, following the breakage of a propeller blade during long-distance trials, this was delayed to April 2001. In June 2001, the carrier took part in exercises in the Mediterranean and in December 2001 left to take part in Operation Enduring Freedom and is stationed in the Arabian Gulf.

AIRCRAFT

The ship can operate a fleet of up to 40 aircraft: Rafale M (range 3,340km), Super Etendard (range 1,682km) and three E-2C Hawkeye airborne early warning aircraft. The ship will also support the AS 565 Panther or NH 90 helicopter.

The main deck consists of a main runway angled at 8.5 to the ship's axis and an aircraft launch area forward of the island. These are each equipped with a USN Type C13 catapult, capable of launching one aircraft per minute. The runway is 195m long and the whole deck measures 260 x 64m. The carrier is fitted with the EADS (Matra Defense) DALAS laser landing aid.

STABILISATION SYSTEM

The carrier is fitted with the SATRAP computerised, integrated stabilisation system designed to maintain stabilisation to within 0.5 of horizontal, allowing aircraft to be operated up to Sea State 5/6. As well as the carrier's two pairs of active stabilising fins and twin rudders, the system has two computer-controlled compensation units which consist of two rail tracks for trains carrying 22t of deadweight. These tracks run transversely below the flight deck. This system is designed to compensate for wind and heel and control roll, yaw and surge.

COMBAT SYSTEM

The ship's weapons are managed by a Senit Combat Management System, which has the capacity to track up to 2,000 targets. The weapon control system consists of two Vigy 105 optronic directors supplied by Sagem. The ship also has two Sagem Vampir search and track systems.
